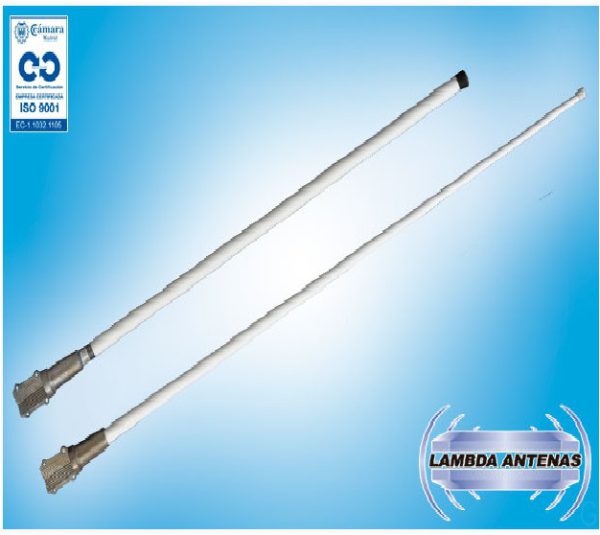

Seria BJ5-XXX include antene fabricate pe benzi de frecvente de 10-15 MHz, si anume:
BJ5-385: 378-392 MHz
BJ5-390: 380-395 MHz
BJ5-400: 396-410 MHz
BJ5-410: 405-418 MHz
BJ5-415: 410-422 MHz
BJ5-420: 416-427 MHz
BJ5-425: 418-432 MHz
BJ5-430: 426-436 MHz
BJ5-440: 435-446 MHz
BJ5-450: 443-456 MHz
BJ5-455: 449-462 MHz
BJ5-460: 455-470 MHz
BJ5-470: 468-477 MHZ
Caracteristicile tehnice sunt urmatoarele:
Latimea de banda: 10-15 MHz
Castigul: 4,5 dBd / 6,65 dBi
Polarizarea: verticala
Latimea fasciculului emis la -3 dB: vertical: 30 grade orizontal: 360 grade
Impedanta: 50 Ω
V.S.W.R.: <1,5
Putere maxima: 150 W
Conector: N female
Protectie: cu impamantare
Temperatura de lucru: -50 / +85 grdC
Umiditate de lucru: 0 – 90%
Vant suportat: > 160 Km/h
Lungime: 2.900 mm
Greutate: 5 Kg
Montaj: montura pentru teava cu diametrul de 30-60 mm
Material:
– antena – fibra de sticla,
– suport – aluminiu anodizat,
– bracket – otel inoxidabil.
